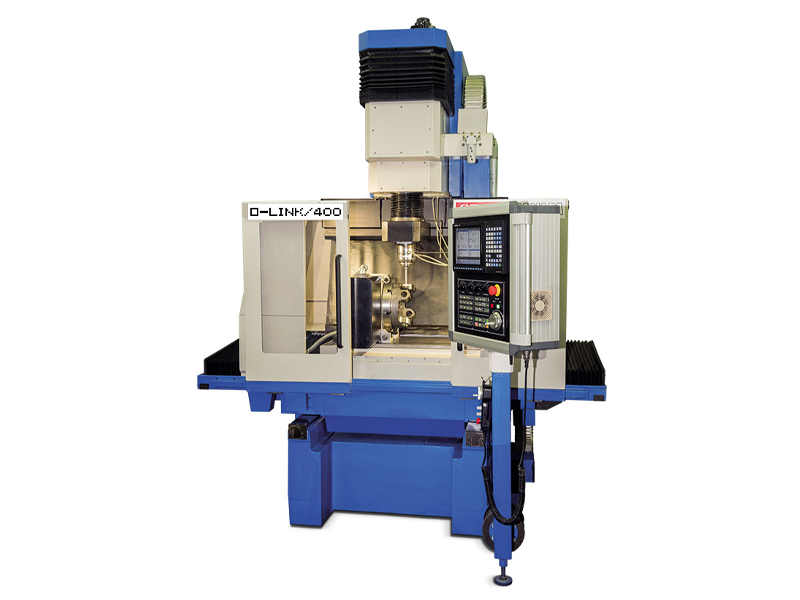

VM8645-24 vertical CNC composite grinder

Category:

The four-axis linkage milling machine not only has all the full processing functions and ability of the multi-surface grinding machine, by choosing different tools, but also has the ability of grinding, boring, milling and drilling on the surface (plane, inclined plane or curved surface) on any spatial position of the workpiece. So it has a wider process range, and a more powerful function.

keys: VM8645-24 vertical CNC composite grinder

+8615055979577

I, Machine tool specifications and system configuration

1, VM 645-24 specifications of the machine tool is a vertical three-line rail structure.

Name and model	VM 645-24 Vertical CNC grinder
Operate mode	Ball wire rod drive, work table movement
Bed dimension	800*400mm
Spindle taper	BT40	Maximum speed	1).24000rpm 2).48000rpm 3).96000rpm
Distance from spindle end surface to working surface	150～820mm	Spindle transmission	Power owner: 1:1
The distance between the spindle center to the column guide rail surface	550mm
Workbench T-type groove	5*18mm
Route or distance of travel	X Y Z：650400550mm
Servo connection	X, Y, Z, and + on the fourth axis
Forms of guide rail structure	X-axis two 55 straight guide rails (THK) Y-axis two 55 straight guide rails (THK) Two 55 heavy-load linear rails (THK)
Z axis balance mode	not have
Ball screw	X-axis 5016, Y-axis 5016, Z-axis 5016 (silver / Yintai)
X.Y. Z fast movement speed	36000mm/min
X.Y. Z feed rate	10000mm/min
X.Y. Z localization accuracy / repeat positioning	0.008/0.006mm
The fourth axis	HR025EX-A0+TTJ255
Bearing	Japan NSK
Lubricating system	Electric automatic lubrication
Workbench bearing	500（KG）
Machine tool weight	4.5（T）
Outer casing housing	Semi-closed
Outline dimension	3000×2900×2800 mm
