CNC-TY36 flat rall CNC lathe

Category:

The TY36 flat track CNC lathe is a brand new product designed and produced in response to market and development needs, based on our factory's years of experience in designing horizontal CNC lathes. The main performance indicators of this product have reached the international advanced level of energy conservation and environmental protection. Compared with similar machine tools, it has the following characteristics:

keys: CNC-TY36 flat rall CNC lathe

+8615055979577

I. Introduction

◆ 1. High efficiency: Short processing cycle, reducing non cutting time
◆ 2. High precision: good static accuracy and machining accuracy
◆ 3. High space efficiency: Small space maximizes its effectiveness
◆ 4. The X/Z axis adopts three-point positioning ball screws with high positioning accuracy. The X/Z axis adopts a linear guide rail design, which increases the guide rail and higher dynamic and static loads, improving the rigidity of the machine tool. This series of machine tools adopts an integrated structure of mechanical, electrical, and hydraulic components, with a compact and reasonable overall layout. Advanced finite element analysis software is used to analyze and optimize the entire machine, achieving optimal performance; The key purchased parts are selected from internationally renowned manufacturers' standard series products to ensure the accuracy and reliability of the machine tool. Therefore, this series of machine tools is particularly suitable for industries such as automotive, motorcycle, electronics, and light industrial machinery to efficiently, massively, and precisely process rotating parts. The machining accuracy is IT6 level, and the Cp value is greater than or equal to
On 1.33.

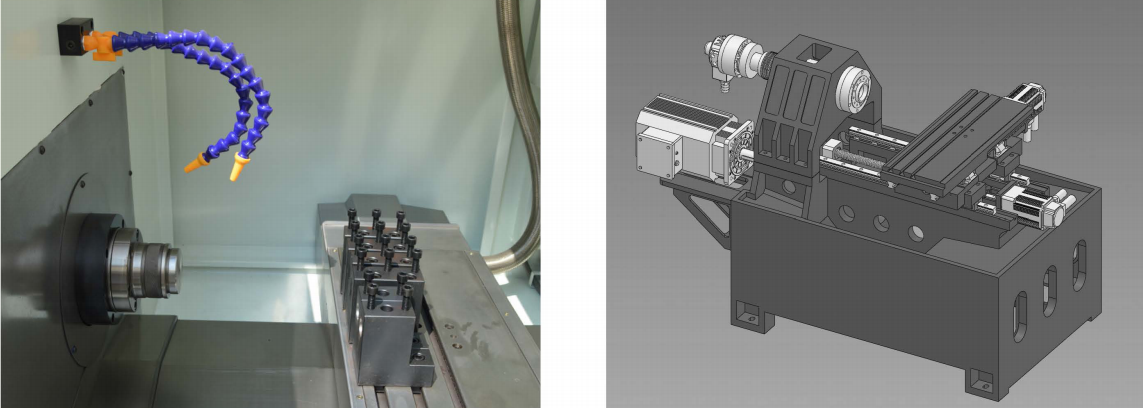

Ⅱ.Internal structure

III.Machine Parameters

系统配置 System Configuration	开通820/可选 Opening 820/Optional
床身上最大回转直径(mm) Maximum turning diameter of the bed	φ360
托板上最大回转直径(mm) Maximum turning diameter on the pallet	φ160
X轴最大行程(mm) X-axis maximum travel	700
Z轴最大行程(mm) Z-axis maximum travel	400
主轴 Spindle	机械/单元可选 Mechanical/unit optional
主轴转速(rpm) Spindle speed	50-3000
主轴端部规格 Spindle end Specification	A2-5
主轴通孔直径(mm) Spindle through holediameter	φ48
伺服电机功率 Servo motor power	4
X轴伺服电机(Nm) X-axis servo motor	4
Z轴伺服电机(Nm) Z-axisservo motor	4
夹紧方式 Clampingmode	液压夹头/卡盘可选 Hydraulic chuck/chuck optional
油缸规格 Cylinder specifications	549/649可选 549/649 optional
刀架形式 Tool holder form	排刀/电动可选 Rankknife/electric optional
刀位数 Number of knives	4
刀方尺寸 ( m m ) Cube dimensions	20x20
导轨形式 Z 轴 Guide rail form Z-axis	直线导轨(30FZS) Linear guide
导轨形式 X 轴 Guide rail form X-axis	直线导轨(30FZS) Linear guide
床身形式 Bed form	平连体 flat conjoined
尾座动力 Tailstock power
重复定位精度 ( mm ) Repeated positioning accuracy	0.005
X轴快速移动(m/min) X-axis fastmovement	20
Z轴快速移动(m/min) Z-axisfast movement	20
机床总重量(kg) Total weight of machine tool	1500
外观尺寸(长x宽x高)(mm) Appearance size(lengthxwidthxheight)	1900x1550x1650 (高度不包含报警灯) (Altitude does not include warning light)
