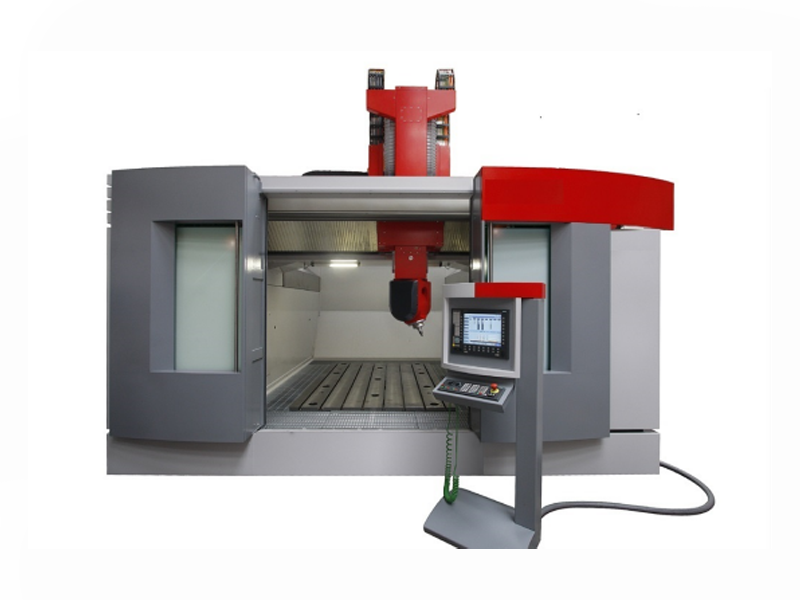

Five axis machining center of Longmen Bridge

Category:

█ High speed, high accuracy
█ Plate structure, high rigidity
█ Full function, full closed
█ The unique patented beam device

keys: Five axis machining center of Longmen Bridge

+8615055979577

The machine features

█ High speed, high accuracy

█ Plate structure, high rigidity

█ Full function, full closed

█ The unique patented beam device

█ CNC：Siemens 840Dsl

█ TaiWan imports：setco

setco five head	Mini operating unit	Siemens 840Dsl

█ Taiwan knife（Optional）

Rotary tool changer	Chain tool changer

Machine tool accessories

Standard configuration

Select the configuration

1. Siemens 840Dsl system

2. Double screw chip conveyor

3. 32 chain tool magazine

4. Spindle speed 24000rpm

5. Spindle blowing

6. Minimum setting unit 0.001mm

7. Cutting Cooling System

8. automatic lubrication system

9. setco double pendulum head

10. 3-color indicator

11. 3-color indicator

12. Heidenhain 640i/620i system

13. Spindle center water outlet

14. Oil-water separator

15. Spindle speed 24000rpm

16. Hydraulic balancing system

17. Tool/workpiece automatic measuring system

18. Raster Scale Feedback

19. 24 disc type tool magazine

20. automatic tool setting point

21. automatic loading and unloading

█ Size chart

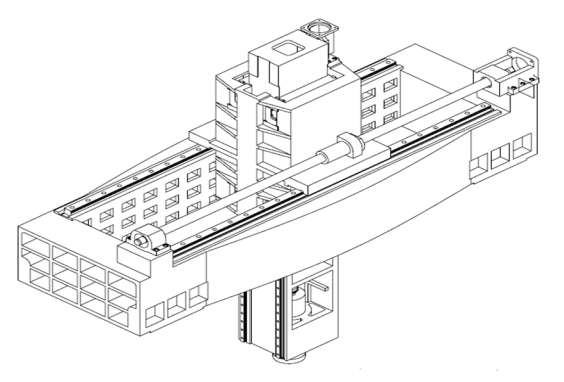

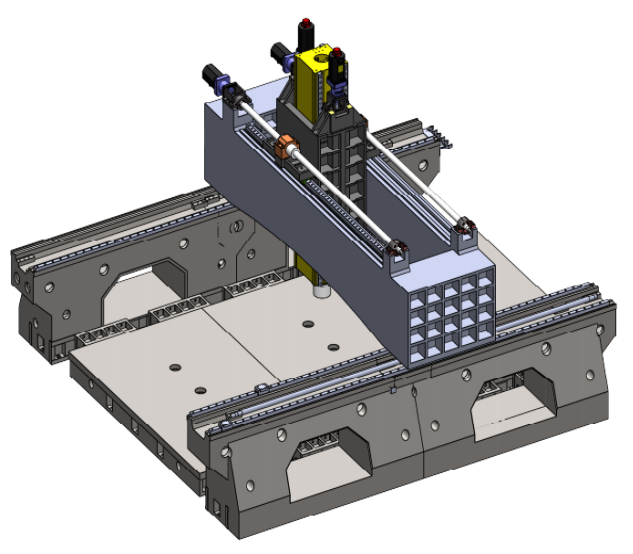

█ Schematic diagram of mechanical structure

Technical parameters

Item		Unit	FAC3020	FAC4030	FAC5040
The width		mm	3000	4000	5000
Table size		mm	3000×2000	4000×3000	5000×4000
Trip	X-axis	mm	3100	4100	8200
	Y-axis	mm	2500	3500	4500
	Z-axis	mm	1250	1250	1250
Rapid feed speeds（G00）		m/min	48	48	48
Machining feed rate（G01）		m/min	20	20	20
Minimum setting		mm	0.001	0.001	0.001
The positioning		mm	0.01
Repeat positioning		mm	0.01
Tools		Pcs	32/40/60
Spindle taper			HSK A63,A100
Max. spindle speed（SP）		rpm	12000/15000/18000/24000
Max. power spindle		Kw	22/30/42
A/C Speed		rpm	60/60
A/C Rotation angle		degree	±110/±360
A/C Torque		Nm	1378/1500
A/C Positioning		arc sec	15"/10"
A/C Repeat positioning		arc sec	±2"
Ball screw			THK、HIWIN、PMI
Linear guide rail			HIWIN、THK、
CNC			SIEMENS840Dsl
Electrical system			GB 19517-2008
Weight		T	30	40	50
