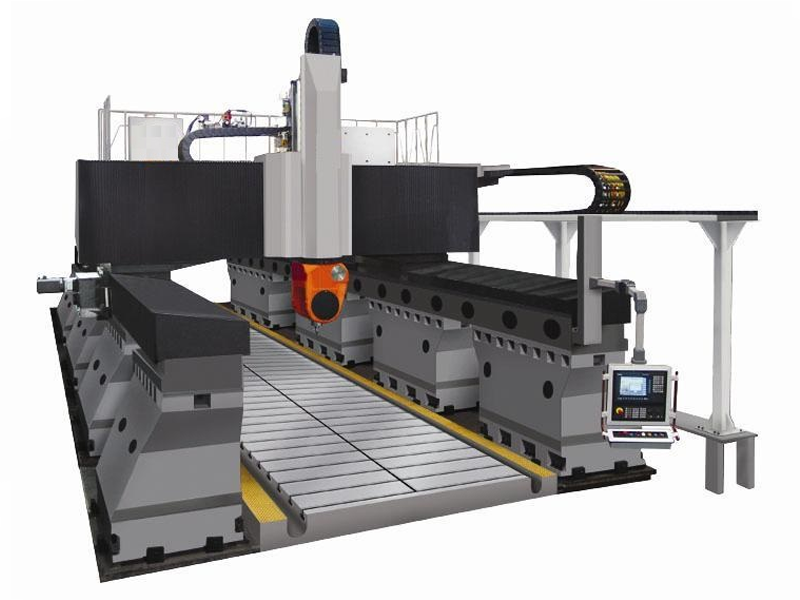

Five axis moving beam processing in Longmen viaduct

Category:

█ High speed, high accuracy
█ Plate structure, high rigidity
█ Full function, full closed
█ The unique patented beam device

keys: Five axis moving beam processing in Longmen viaduct

+8615055979577

The machine features

█ High speed, high accuracy

█ Plate structure, high rigidity

█ Full function, full closed

█ The unique patented beam device

█ CNC：Siemens 840Dsl

█ imports： A/C

Five head	Mini operating unit	Siemens 840Dsl

█ Taiwan knife（Optional）

Rotary tool changer	Chain tool changer

Machine tool accessories

Standard configuration

Select the configuration

1. Siemens 840Dsl system

2. Double screw chip conveyor

3. 32 chain tool magazine

4. Spindle speed 18000rpm

5. Spindle blowing

6. Minimum setting unit 0.001mm

7. Cutting cooling system

8. Nitrogen balancing system for ram

9. Automatic lubrication system

10. HS778 double pendulum head

11. 3-color indicator

12. Heidenhain 640i/620i system

13. Spindle center water outlet

14. Oil-water separator

15. Spindle speed 24000rpm

16. Hydraulic balancing system

17. Tool/workpiece automatic measuring system

18. Raster scale feedback

19. Hydraulic balancing

20. 24 disc tool changer

21. automatic tool setting point

22. Automatic loading and unloading system

Size chart

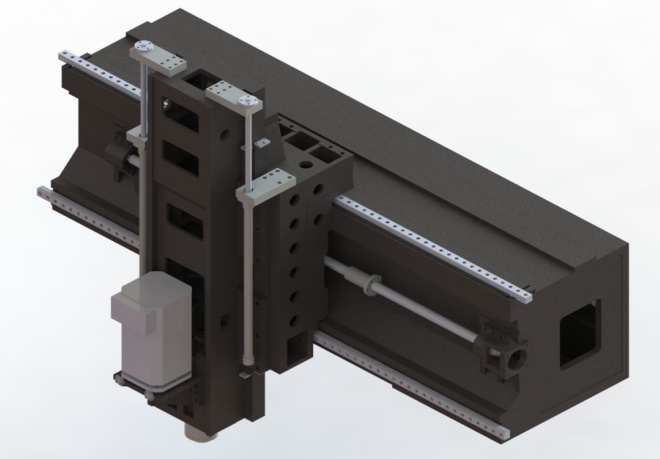

█ Schematic diagram of mechanical structure

█ Mechanical drawing

Front view	Side view

Technical parameters

Item		Unit	FAM5030	FAM6038	FAM8042
The width		mm	4000	4800	5200
Table size		mm	5000×2000	6000×3800	8000×4200
Trip	X-axis	mm	5100	6100	8200
	Y-axis	mm	3500	4200	4600
	Z-axis	mm	1350	1350	1350
Rapid feed speeds（G00）		m/min	30	30	30
Machining feed rate（G01）		m/min	15	15	15
Minimum setting		mm	0.001	0.001	0.001
The positioning		mm	0.012
Repeat positioning		mm	0.01
Tools		Pcs	32/40/60
Spindle taper			HSK A63/A100
Max.spindle speed		rpm	12000/15000/18000/24000
Max. power spindle		Kw	30,42,55
A/C Shaft speed		rpm	23/23
A/C rotation angle		degree	±120/±360
A/C torque		Nm	1500/1500
A/C positioning accuracy		arc sec	20"/20"
A/C Repetitive positioning accuracy		arc sec	4"/4"
Ball screw			THK、HIWIN、KSK
Linear guide rail			THK，HIWIN，Rexroth
CNC			SIEMENS840Dsl、220M-5
Electrical system			GB 19517-2008
Weight		T	50	70	100
