The V series CNC five axis vertical machining center is a technology intensive product designed and manufactured by our company for high-speed boring, milling, twisting, drilling and other five axis linkage CNC machining centers.

keys: Vertical five axis machining center

+8615055979577

I. Introduction

This machine tool can be used in civil and military industries such as machinery, automobiles, tools, molds, carving, clocks, footwear, power generation, ships, aerospace, precision instruments, etc.

The CNC five axis linkage vertical machining center has all the machining functions and capabilities of a multi face machining center. By selecting different cutting tools, it also has the ability to boring, milling, and drilling surfaces (flat, inclined, or curved surfaces) at any spatial position on the workpiece. So its process scope is wider and its functions are stronger.

Ⅱ.Mechanical structure

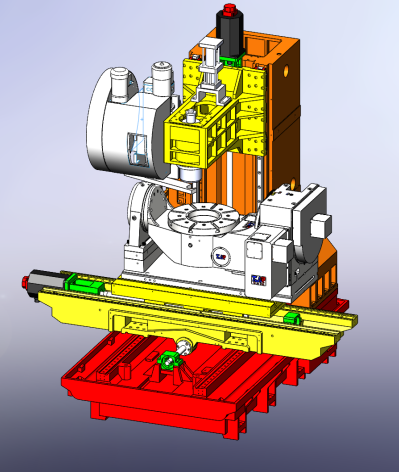

The mechanical structure of the V-series CNC five axis vertical machining center is as follows:

III. Specification parameters

parameter		unit	VMC1060-50/63	VMC1370-50/63
X axis travel		mm	1000	1300
Y axis travel		mm	600	700
Z axis travel		mm	600	700
A axis travel		°	±120
B axis travel		°	360
Distance from spindle end face to table		mm	150-800	110-810
table size		mm	1200*600	1400*700
T-groove size (width x spacing x quantity)			5-18/80	5-18/110
Max. weight of table		kg	500	600
Size of rotary table (B-axis)		mm	500/630
Spindle speed		rpm	15000/18000/2400
Spindle motor power		Kw	15-25
Spindle inner hole taper			HSK-A63
Three axis motor torque		Nm	20/20/27		30/30/30
X axis fast movement speed		m/min	24/36/48
Y axis fast movement speed		m/min	24/36/48
Z axis fast movement speed		m/min	24/36/48
A axis fast movement speed		rpm	20
B axis fast movement speed		rpm	20
X/Y/Zfeed rate		mm/min	1-10000
X axis screw size (diameter x lead)		mm	40×12/16/20	50×12/16/20
Y axis screw size (diameter x lead)		mm
Z axis screw size (diameter x lead)		mm
Wheeled	Tool capacity		32
	Max. blade diameter (full/empty)	mm	70/100			80/150
	Max. tool length	mm	300
	Max.tool weight	kg	8
	Tool change time (knife knife)	sec	3
positioning accuracy		mm	0.006
Repetitive positioning accuracy		mm	0.004
A/B axis accuracy			10"/4"
CNC system			SIEMENS 840Dsl（One）
Total number of control axes		Axes	5
Simultaneously controlled axes		Axes	5
Overall weight		kg	6500	9500
External dimensions (length* width*height)		mm	311622602560	351628603100

IV. Standard attachments

1、Crux components

1）Cradle turntable

The external structure of the DF series CNC cradle turntable is as follows:

The external dimensions of the DF series CNC cradle turntable are as follows:

Technical parameters of DF series CNC cradle turntable:

project	unit	DF500H	DF630H
A shaft torque	Nm	700	1200
A shaft speed	rpm	50	35
xis travel	°	±110（±120°）
C shaft torque	Nm	410	710
C shaft speed	rpm	80	50
C table size	mm	500	630
C axis travel	°	360
positioning accuracy	"	15"
Repetitive positioning accuracy	"	4

2）Electric spindle

The external dimensions of the electric spindle are as follows:

Parameters of electric spindle:

Specification	225A
Max. speed	15000/16000/20000/24000
taper	ISO#40 HSK A63
Bearing inner diameter	¢70mm
lubrication system	Crease/Oil-Air
external diameter	¢230mm
Nasal distance	137mm
Total length of spindle	849.5mm
Motor brand	FANUC	Ate
Motor specifications	Bil112M/20000	AC170/200
Motor power	10/15/18.5kw	25/29kw
Motor torque	63.7/95.5Nm	83.2/99.3Nm
Optional configuration	CTs/Air shield
