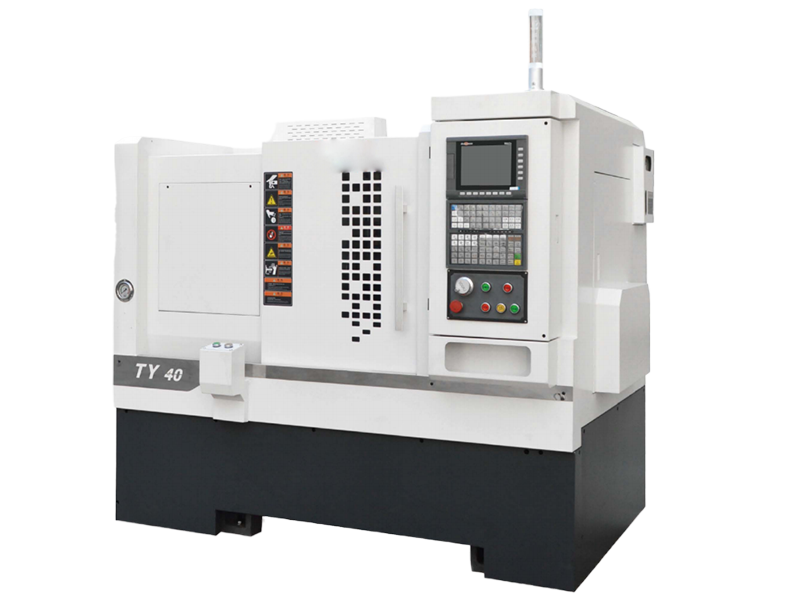

CNC-TY40 inclined bed CNC lathe

Category:

The TY40 inclined bed CNC lathe is a brand new product designed and produced in response to market and development needs, based on our factory's years of experience in designing horizontal CNC lathes. The main performance indicators of this product have reached the international advanced level, including energy conservation and environmental protection. Compared with similar machine tools, it has the following characteristics:

keys: CNC-TY40 inclined bed CNC lathe

+8615055979577

I. Introduction

◆ 1. High efficiency: Short processing cycle, reducing non cutting time
◆ 2. High precision: good static accuracy and machining accuracy
◆ 3. High space efficiency: Small space maximizes its effectiveness
◆ 4. The X/Z axis adopts three-point positioning ball screws with high positioning accuracy. The X/Z axis adopts a linear guide rail design, which increases the guide rail and higher dynamic and static loads, improving the rigidity of the machine tool.This series of machine tools adopts an integrated structure of mechanical, electrical, and hydraulic components, with a compact and reasonable overall layout. Advanced finite element analysis software is used to analyze and optimize the entire machine, achieving optimal performance; The key purchased parts are selected from internationally renowned manufacturers' standard series products to ensure the accuracy and reliability of the machine tool. Therefore, this series of machine tools is particularly suitable for industries such as automotive, motorcycle, electronics, and light industrial machinery to efficiently, massively, and precisely process rotating parts. The machining accuracy is IT6 level, and the Cp value is greater than or equal to
On 1.33.

Ⅱ.Internal structure

III.Machine Parameters

系统配置 System Configuration	拓普康980TB/可选 Myrette 980TB/Optional
床身上最大回转直径(mm) Maximum turning diameterof the bed	φ420
托板上最大回转直径(mm) Maximum turningdiameteron the pallet	φ165
X轴最大行程(mm) X-axis maximum travel	700
Z轴最大行程(mm) Z-axis maximum travel	400
主轴 Spindle	机械主轴/可选 Mechanical spindle/Optional
主轴转速(pm) Spindle speed	50-3000
主轴端部规格 Spindle end Specification	A2-5
主轴通孔直径(mm) Spindle through hole diameter	φ48
主电机功率(KW) Main motorpower	5.5
X轴伺服电机(Nm) X-axisservo motor	6
Z轴伺服电机(Nm) Z-axis servo motor	6
夹紧方式 Clamping mode	夹头/卡盘可选 Chuck optional
油缸规格 Cylinder specifications	液压中空536/549 Hydraulic hollow 536/549
刀架形式 Tool holder form	排刀 / 6 3 刀塔 Row knife/63 Knife Tower
刀位数 Number ofknives	4/8
刀方尺寸 ( mm ) Cube dimensions	20×20
导轨形式Z轴 Guide rail form Z-axis	30
导轨形式X轴 Guide rail form X-axis	30
床身形式 Bed form	30°斜床身
尾座动力 Tailstock power
重复定位精度(mm) Repeated positioning accuracy	0.005
X轴快速移动(m/min) X-axis fast movement	24
Z轴快速移动(m/min) Z-axis fast movement	24
机床总重量(kg) Total weight of machine tool	1800
外观尺寸(长x宽x高)(mm) Appearance size(lengthxwidthxheight)	1900x1450x1650 (高度不包含报警灯) (Altitude does not include warning light)
