CNC-TY 5055

Category:

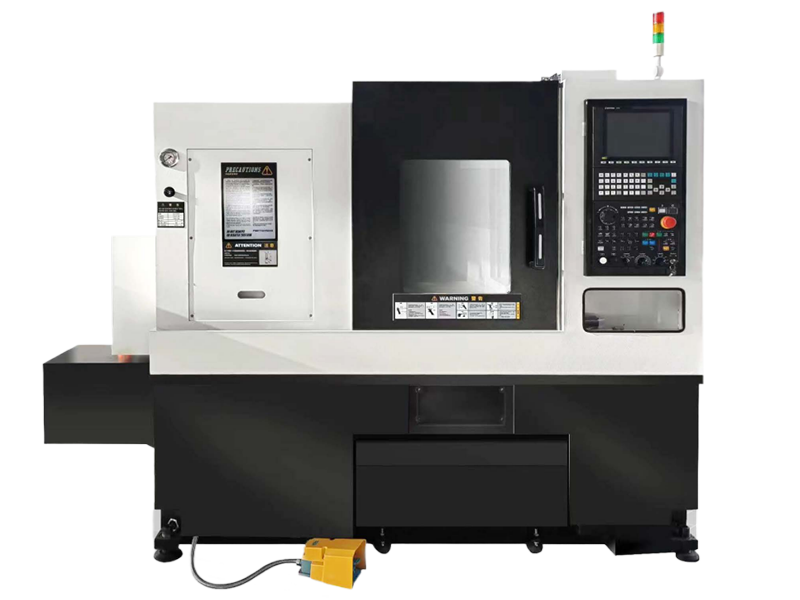

TY5055 is a brand new product designed and produced in response to market and development needs, based on our factory's years of experience in designing horizontal CNC lathes. The main performance indicators of this product have reached the international advanced level, including energy conservation and environmental protection. Compared with similar machine tools, it has the following characteristics:

keys: CNC-TY 5055

+8615055979577

I. Introduction

◆ 1. High efficiency: Short processing cycle, reducing non cutting time
◆ 2. High precision: good static accuracy and machining accuracy
◆ 3. High space efficiency: Small space maximizes its effectiveness
◆ 4. The X/Z axis adopts three-point positioning ball screws with high positioning accuracy. The X/Z axis adopts a linear guide rail design, which increases the guide rail and higher dynamic and static loads, improving the rigidity of the machine tool. This series of machine tools adopts an integrated structure of mechanical, electrical, and hydraulic components, with a compact and reasonable overall layout. Advanced finite element analysis software is used to analyze and optimize the entire machine, achieving optimal performance; The key purchased parts are selected from internationally renowned manufacturers' standard series products to ensure the accuracy and reliability of the machine tool. Therefore, this series of machine tools is particularly suitable for industries such as automotive, motorcycle, electronics, and light industrial machinery to efficiently, massively, and precisely process rotating parts. The machining accuracy is IT6 level, and the Cp value is greater than or equal to
On 1.33.

Ⅱ.Internal structure

III.Machine Parameters

最大回转直径(mm) Maximum swing diameter	550
最大加工直径(mm) Maximum machining diameter	330/350
最大加工长度(一夹一顶)(mm) Maximumprocessing length	520
X 轴行程 ( mm ) X-axis travel	190
Z 轴行程 ( mm ) Z-axis travel	580
尾座轴行程(mm) Tailstock shaft travel	440
新代电机输出功率(30min/连续(KW) New generation motor outputpower	11/15
主轴端部形式 Spindle end Form	JISA2-6
主轴转速(rpm) Spindle speed	10-4500
卡盘 ( m m ) Chuck	8寸(可选10寸)
主轴通孔直径(mm) Spindle through hole diameter	62
刀具容量(把) Tool capacity	12
刀具分度时间(秒/位) Tool indexing time	0.2
车刀刀体尺寸(mm) Tool body size	20/20
最大镗刀直径(mm) Maximum boing tool diameter	32
传动形式 Transmission form	伺服可编程 servo programmable
尾座锥孔形式 Tailstock cone hole form	MT.NO.4
新代电机功率(KW) New generation motor power	1.7
X轴快进速度(mm/min) X-axis fast forward speed	30000
新代电机功率(KW) New generation motor power	2.4
Z轴快进速度(mm/min) Z-axis fast forward speed	30000
新代电机功率(KW) New generation motor power	2.4
容积(L) Volume	150
动力源(连续) Power source	18KVA
占地面积 ( m m ) Floor Area	2318×1585×1770
机床净重(kg) net weight of machine tool	4500
电源要求 Power Requirements	380V+10%-15%
环境温度(℃) Ambient temperature	0~40
环境相对湿度(%) Ambient relative humidity	≤85
