CNC-TY52 knife tower crane high and low rail CNC lathe

Category:

The TY52 turret crane high and low track CNC lathe is a brand new product designed and produced based on our factory's years of experience in designing horizontal CNC lathes, in response to market and development needs. The main performance indicators of this product have reached the international advanced level, including energy conservation and environmental protection. Compared with similar machine tools, it has the following characteristics:

keys: CNC-TY52 knife tower crane high and low rail CNC lathe

+8615055979577

I. Introduction

◆ 1. High efficiency: Short processing cycle, reducing non cutting time
◆ 2. High precision: good static accuracy and machining accuracy
◆ 3. High space efficiency: Small space maximizes its effectiveness
◆ 4. The X/Z axis adopts three-point positioning ball screws with high positioning accuracy. The X/Z axis adopts a linear guide rail design, which increases the guide rail and higher dynamic and static loads, improving the rigidity of the machine tool. This series of machine tools adopts an integrated structure of mechanical, electrical, and hydraulic components, with a compact and reasonable overall layout. Advanced finite element analysis software is used to analyze and optimize the entire machine, achieving optimal performance; The key purchased parts are selected from internationally renowned manufacturers' standard series products to ensure the accuracy and reliability of the machine tool. Therefore, this series of machine tools is particularly suitable for industries such as automotive, motorcycle, electronics, and light industrial machinery to efficiently, massively, and precisely process rotating parts. The machining accuracy is IT6 level, and the Cp value is greater than or equal to 1.33.

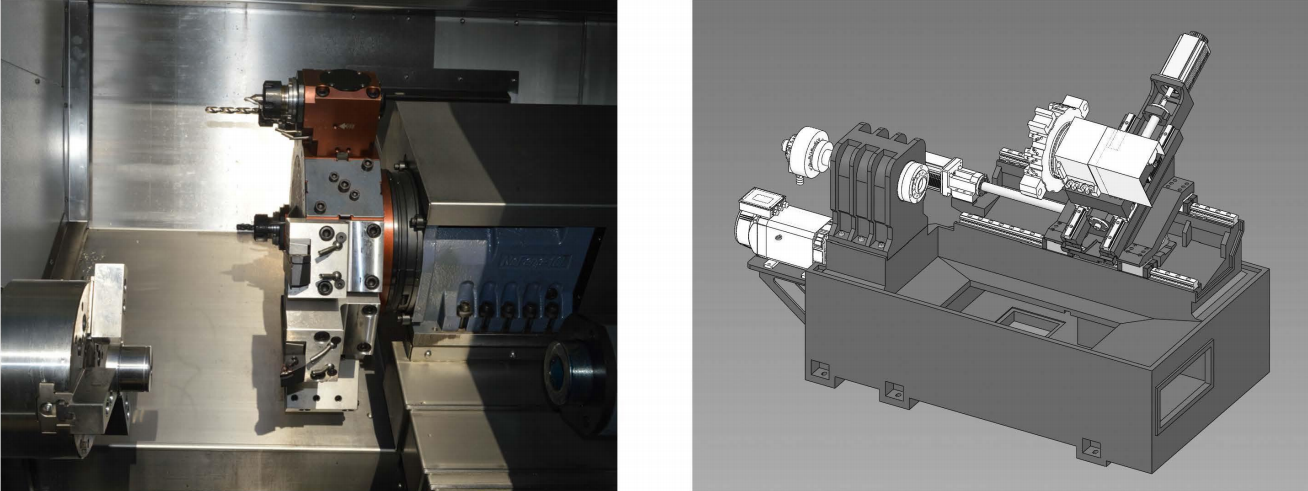

Ⅱ.Internal structure

III.Machine Parameters

系统配置 System Configuration	新代22TA/广数可选 Syntec 22TA/wide number
床身上最大回转直径(mm) Maximumturning diameter of the bed	φ520
工件最大加工直径(mm) Maximum machining diameter of workpiece	φ400
X轴最大行程(mm) X-axis maximum travel	280
Z轴最大行程(mm) Z-axis maximum travel	500
主轴 Spindle	A2-8
主轴转速(rpm) Spindle speed	50-4000
主轴端部规格 Spindle endSpecification	A2-6
主轴通孔直径(mm) Spindle throughholediameter	φ67
伺服电机功率 Servo motor power	7.5
X轴伺服电机(Nm) X-axis servo motor	10
Z轴伺服电机(Nm) Z-axisservo motor	10
夹紧方式 Clamping mode	液压夹头/卡盘可选 Hydraulic clamping/Chuck
刀架形式 Tool holder form	100型八工位/可选十二工位液压刀塔 100 type 8/12-station hydraulic turret
刀位数 Numberof knives	8/12
刀方尺寸 ( mm ) Cube dimensions	25
导轨形式Z轴 Guide rail form Z-axis	45滚柱直线导轨(德国FZS) 45 roller linear guide(Germany FZS)
导轨形式X轴 Guide rail form X-axis	35滚柱直线导轨(德国FZS) 35 roller linear guide(Germany FZS)
床身形式 Bed form	30°高低轨 30°High and low rail
最小移动量(mm) Minimum amount of movement	0.005
最小检测量(mm) Minimum detection amount	0.005
X轴快速移动(m/min) X-axisfast movement	18
Z轴快速移动(m/min) Z-axisfast movement	20
机床总重量(kg) Total weight of machinetool	3200
油缸规格 Cylinder specifications	液压中空1552 Hydraulic hollow 536
外观尺寸(长x宽x高)(mm) Appearance size(lengthxwidthxheight)	260016551700 (高度不包含报警灯) (Altitudedoes not include warning light)
