CNC-TY64 inclined bed CNC lathe

Category:

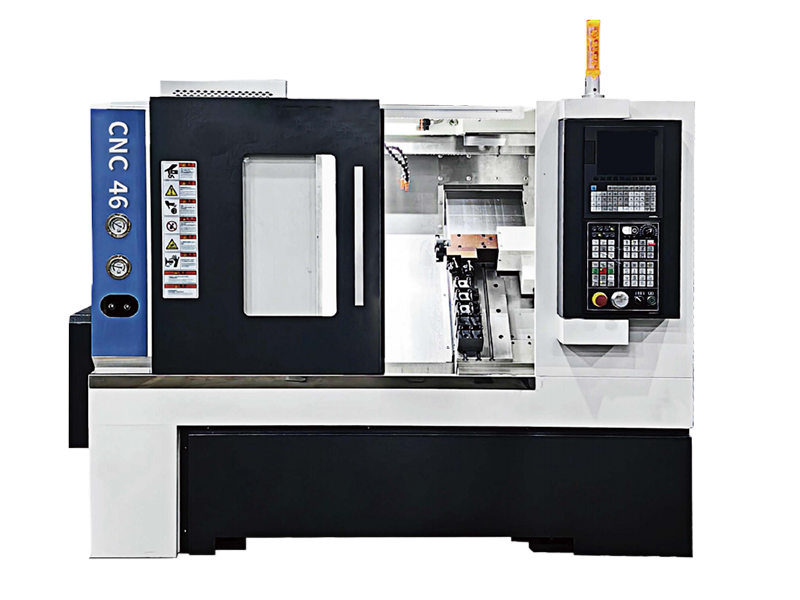

The TY46 inclined bed CNC lathe is a brand new product designed and produced in response to market and development needs, based on our factory's years of experience in designing horizontal CNC lathes. The main performance indicators of this product have reached the international advanced level, including energy conservation and environmental protection. Compared with similar machine tools, it has the following characteristics:

keys: CNC-TY64 inclined bed CNC lathe

+8615055979577

I. Introduction

◆ 1. High efficiency: Short processing cycle, reducing non cutting time
◆ 2. High precision: good static accuracy and machining accuracy
◆ 3. High space efficiency: Small space maximizes its effectiveness
◆ 4. The X/Z axis adopts three-point positioning ball screws with high positioning accuracy. The X/Z axis adopts a linear guide rail design, which increases the guide rail and provides higher dynamic and static loads, thereby enhancing the rigidity of the machine tool. This series of machine tools adopts an integrated structure of mechanical, electrical, and hydraulic components, with a compact and reasonable overall layout. Advanced finite element analysis software is used to analyze and optimize the entire machine, achieving optimal performance; The key purchased parts are selected from internationally renowned manufacturers' standard series products to ensure the accuracy and reliability of the machine tool. Therefore, this series of machine tools is particularly suitable for industries such as automotive, motorcycle, electronics, and light industrial machinery to efficiently, massively, and precisely process rotating parts. The machining accuracy is IT6 level, and the Cp value is greater than or equal to
On 1.33.

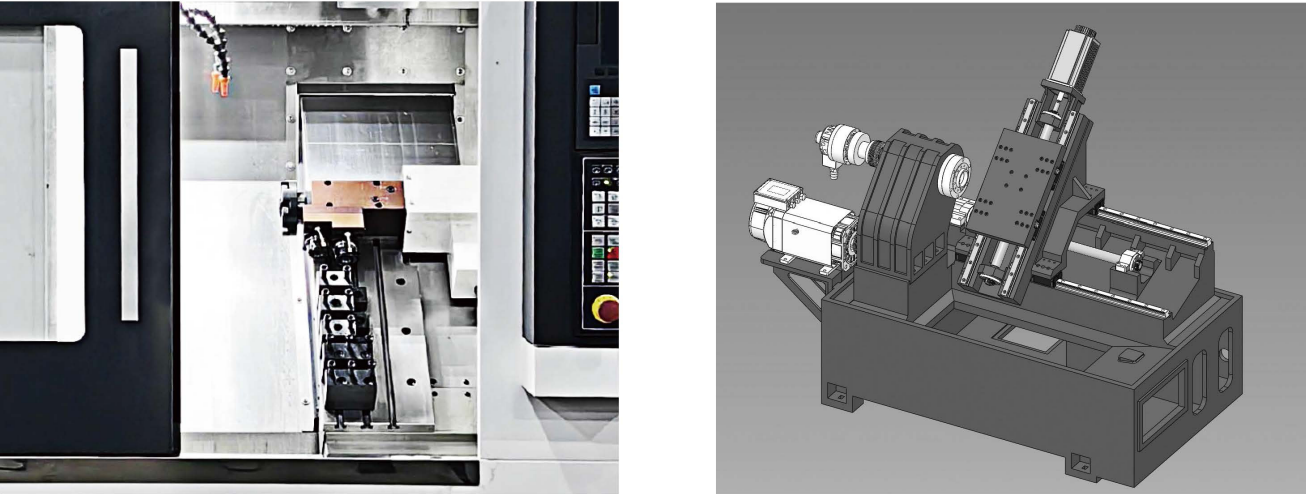

Ⅱ.Internal structure

III.Machine Parameters

系统配置 System Configuration	凯恩帝1000T/可选 Emperor Kane 1000T/Optional
床身上最大回转直径(mm) Maximum turning diameter ofthe bed	φ500
托板上最大回转直径(mm) Maximum turning diameter on the pallet	φ160
X轴最大行程(mm) X-axis maximum travel	900
Z轴最大行程(mm) Z-axis maximum travel	500
主轴 Spindle	主轴单元 Spindle unit
主轴转速(rpm) Spindle speed	50-4000
主轴端部规格 Spindle end Specification	A2-5/-A2-6选配
主轴通孔直径(mm) Spindle through hole diameter	φ48
主电机功率(KW) Main motor power	5.5
X轴伺服电机(Nm) X-axis servo motor	7.5
Z轴伺服电机(Nm) Z-axis servo motor	7.5
夹紧方式 Clamping mode	液压夹头/卡盘可选 Hydraulic tightening//Chuck
油缸规格 Cylinder specifications	液压中空546/649可选 Hydraulic hollow 546/649
刀架形式 Tool holderform	排刀 Row knife
刀位数 Number of knives	4
刀方尺寸 ( mm ) Cube dimensions	20x20
导轨形式Z轴 Guide rail form Z-axis	直线导轨(35FZS) Linear guide
导轨形式X轴 Guide rail form X-axis	直线导轨(35FZS) Linear guide
床身形式 Bed form	高低轨40°斜床身 High and low rail 40°inclined bed
尾座动力 Tailstock power
重复定位精度(mm) Repeated positioning accuracy	0.005
X轴快速移动(m/min) X-axisfast movement	24
Z轴快速移动(m/min) Z-axis fast movement	24
机床总重量(kg) Total weight of machine tool	2500
外观尺寸(长x宽x高)(mm) Appearance size(lengthxwidth xheight)	2300x1600x1750 (高度不包含报警灯) (Altitude does not include warning light)
