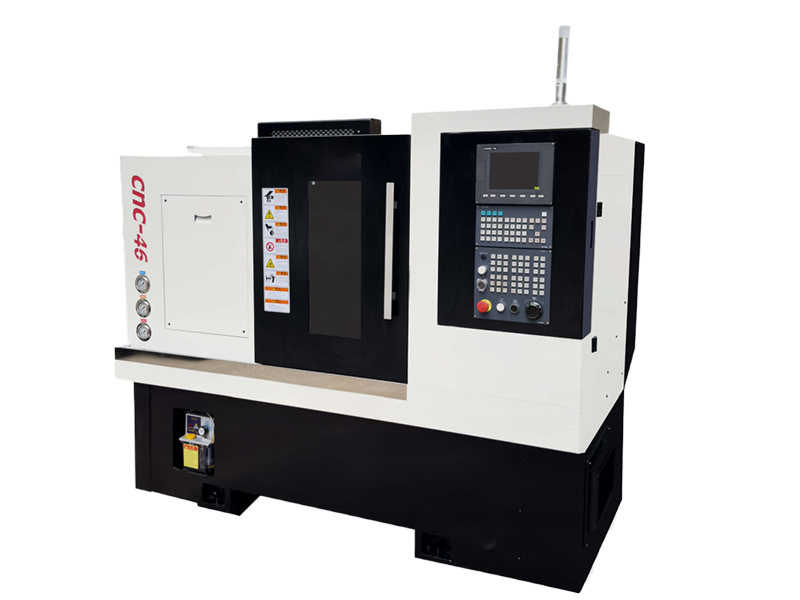

CNC-TY46 turret tailstock CNC lathe

Category:

The TY46 turret tailstock CNC lathe is a brand new product designed and produced in response to market and development needs, based on our factory's years of experience in designing horizontal CNC lathes. The main performance indicators of this product have reached the international advanced level, including energy conservation and environmental protection. Compared with similar machine tools, it has the following characteristics:

keys: CNC-TY46 turret tailstock CNC lathe

+8615055979577

I. Introduction

◆ 1. High efficiency: Short processing cycle, reducing non cutting time
◆ 2. High precision: good static accuracy and machining accuracy
◆ 3. High space efficiency: Small space maximizes its effectiveness
◆ 4. The X/Z axis adopts three-point positioning ball screws with high positioning accuracy. The X/Z axis adopts a linear guide rail design, which increases the guide rail and higher dynamic and static loads, improving the rigidity of the machine tool. This series of machine tools adopts an integrated structure of mechanical, electrical, and hydraulic components, with a compact and reasonable overall layout. Advanced finite element analysis software is used to analyze and optimize the entire machine, achieving optimal performance; The key purchased parts are selected from internationally renowned manufacturers' standard series products to ensure the accuracy and reliability of the machine tool. Therefore, this series of machine tools is particularly suitable for industries such as automotive, motorcycle, electronics, and light industrial machinery to efficiently, massively, and precisely process rotating parts. The machining accuracy is IT6 level, and the Cp value is greater than or equal to 1.33.

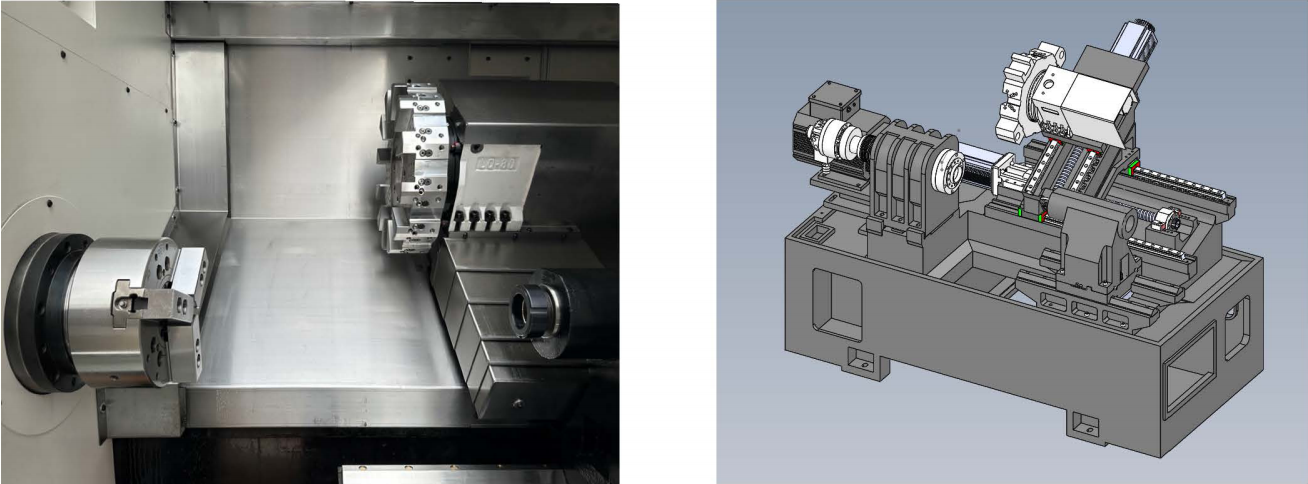

Ⅱ.Internal structure

III.Machine Parameters

系统配置 System Configuration	新代7TA New Generation 7TA
床身上最大回转直径(mm) Maximumturning diameter of the bed	φ500
托板上最大回转直径(mm) Maximum tuming diameter onthe pallet	φ160
X轴最大行程(mm) X-axis maximum travel	500
Z轴最大加工行程(mm) Z-axis maximum machining stroke	400
主轴 Spindle	170主轴单元 170 spindle unit
主轴转速(rpm) Spindle speed	50-4000
主轴端部规格 Spindle endSpecification	A2-6
主轴通孔直径(mm) Spindle through hole diameter	φ56
伺服电机功率 Servo motor power	5.5
X轴伺服电机(Nm) X-axisservo motor	8.12
Z轴伺服电机(Nm) Z-axis servo motor	8.12
夹紧方式 Clamping mode	卡盘/筒夹选配 Chuck/collet option
油缸规格 Cylinder specifications	液压中空646 Hydraulic hollow 646
刀架形式 Tool holder form	80液压刀塔 80 hydraulic turret
刀位数 Number of knives	8 / 1 2 工位选配
刀方尺寸 ( m m ) Cube dimensions	25
导轨形式 z Guide railform Z-axis	35滚柱导轨 35 roller guide
导轨形式 X 轴 Guide rail form X-axis	30滚柱导轨 30 roller guide
床身形式 Bed form	高低轨 High and low rail
尾座动力 Tailstock power	可选配液压尾顶
重复定位精度 ( mm ) Repeated positioning accuracy	0.005
X轴快速移动(m/min) X-axisfast movement	20
Z轴快速移动(m/min) Z-axis fast movement	20
机床总重量(kg) Total weight of machine tool	2500
外观尺寸(长x宽x高)(mm) Appearance size(lengthxwidthxheight)	230015001900 (高度不包含报警灯) (Altitude does notinclude warning light)
