ZCS-QGM2030B5 microhole three grinding head ultra-precision ultrasonic air static pressure round CNC grinder
Category:
keys: ZCS-QGM2030B5 microhole three grinding head ultra-precision ultrasonic air static pressure round CNC grinder
Product Description

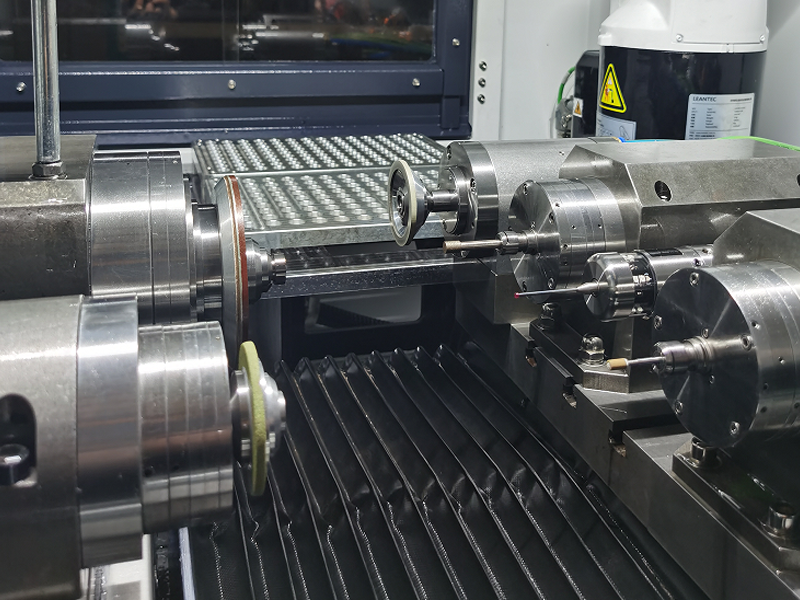

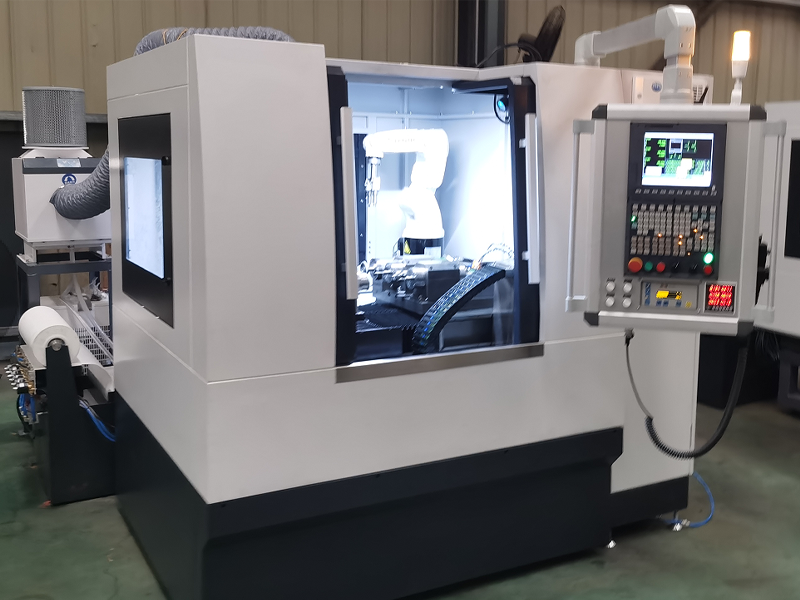

"ZCS-QGM2030B 5 microhole three grinding head ultra-precision ultrasonic air static pressure round CNC grinder", using air static pressure workpiece electric spindle, three grinding head ultrasonic air static pressure wheel electric spindle (21), special CBN grinding wheel trim air static pressure electric spindle, X / Z axis using ultra-precision air floating rail, Spain high precision grating ruler, by high precision linear motor drive. Natural granite bed body, air spring shock absorption system, robot automatic loading and unloading (optional), precision online measuring instrument (optional), AE sensor (optional), and the new generation of high precision numerical control system. The whole machine achieves the machining accuracy of 0.3um round degree, 2 cylindrical degree (full stroke) and Ra0.1um smooth finish. The specific technical parameters are shown as follows:
Technical characteristics of the equipment:
Suitable for metal, ceramic and other parts of the tiny cone hole, inner hole, inner step hole, outer circle, end surface of the grinding grinding processing.
1, automobile industry: grinding processing of nozzle occasional parts, seat face and middle hole.
2, bearing industry: the grinding of the bearing inner ring and the outer ring groove.
3, mold industry: guide sleeve, microhole washed down mold, drawing mold, cold drawing mold round grinding grinding, etc.
4, sewing machine industry: all kinds of set of parts of the small hole grinding.
5, spring clamping industry: pcb drilling high-speed clamping, molding machine high-speed clamping, walking machine precision clamping, CNC precision clamping.
6, communication industry: optical fiber coupling, optical cable connection device tiny inner hole grinding.
7. Carlay carbide industry: oil, grinding of mine carbide sealing devices.
8, hydraulic industry: all kinds of precision oil pump, oil valve, sealing device grinding.
Table of the main technical parameters of the whole machine
| Product name | Micro-hole three grinding head ultra-precision ultrasonic gas static pressure circular CNC grinder | |
| Model | Z CS-Q G M2030B 5 | |
| Lntellectual property rights (invention patent) |
① An inner or outer round ultra-precision grinder of pneumatic static metal parts, Patent No.2011102132 ② A gas guide rail for ultra-precision detection or ultra-high precision processing equipment, patent no. 201510300 ③ An ultrasonic gas static piezoelectric spindle, Patent No.201911122 |
|
| Scope of application | Metal, ceramic and other parts of the tiny cone hole, inner hole, inner step hole, outer circle, end surface grinding grinding processing. | |
| Grinding inner diameter range (mm) | 1.5～50 | |
| Maximum grinding inner length (mm) | 100 | |
| Range of cone surface angle (degree) | 15°～ 180° | |
| Rowing angle of header (degree) | 45° | |
| Working accuracy | Roundness (μm) | 0.3 |
| Cylindricity (μm) | 2 Full trip | |
| Surface rough (Ra / μ m) | 0.1 | |
| Electric spindle of the inner round grinding wheel | Rotation accuracy <0.2um, axial head radial beating 0.3um and axial beating 0.3um | |
| Workpiece electric spindle | ||
| The grinding wheel trim the electric spindle | ||
| Workpiece electric spindle | High stiffness gas electrostatic pressure permanent magnet synchronous electric spindle, the highest speed of 5000 rpm, 1.6KW, 7 Nm, synchronous drive infinite speed regulation. The built-in precision diaphragm type automatic pull knife is used to fit the card. | |
| Electric spindle of inner round grinding wheel 1 # (optional) | Ultrasonic gas-static pressure electric spindle, speed range of 80,000 rpm, 2 level, 1.5KW,0.18Nm, frequency converter drive infinite speed regulation. Swiss high precision ER11~16 spring stylet is used into the straight wheel. | |
| Electric spindle of inner round grinding wheel 2 # (optional) | High rigidity ultrasonic gas electrostatic voltage spindle, the highest speed of 40,000 rpm, 5.5KW, frequency converter drive infinite speed regulation. The grinding wheel connecting rod is connected with M141.5 external thread, and ER11 or M2 internal wire is connected with the grinding wheel. | |
| 3 (optional) | High stiffness gas static pressure permanent magnet synchronous electric spindle, 1.5KW / 2 Nm / 12000rpm, synchronous frequency converter drive infinite speed regulation. CBN end face grinding wheel jacket installation, CBN (60-75) * 20 grinding wheel. | |
| CBN emery wheel dresser | Dedicated for aerostatic piezo spindle 1.5KW, 12000rpm for CBN grinding wheel trimming. Mounted at the front of the head frame. | |
| Ultrasonic grinding function | The built-in ultrasonic mechanism of the grinding wheel can automatically control the conversion of ultrasonic operation. | |
|
Lead rail |
X axis guide rail | Adopt ultra-precision air-floating guide rail, with a straightness of 1um / full travel. |
| Z axis guide rail | Adopt ultra-precision air-floating guide rail, with a straightness of 1um / full travel. | |
| X axle (mm) | Spanish grid high precision grating ruler, high precision linear motor drive, maximum stroke 400. | |
| Z axle (mm) | Spanish grid high precision grating ruler, high precision linear motor drive, maximum stroke 300. | |
| CNC control system (μ m) | Taiwan new generation high precision CNC system with a resolution of 0.1 μ m. | |
| Linear motion actuator | Singapore Yakobis high-precision high-thrust U-core linear motor, water cooling. | |
| AE sensor (optional) | SBS fluid AE sensor, installed at the front of the workpiece shaft for emptying and collision prevention. Improve the processing efficiency. | |
| Online measurement (optional) | Conwith contact displacement sensor head, one-way repeated measurement accuracy ± 1.5um. An online pneumatic meter can also be selected. | |
| Center cooling of the workpiece spindle | The workpiece spindle has a central cooling hole, the coolant enters the front end from the rear of the spindle, the cooling effect is good. | |
| Robot loading and unloading device (optional) | The robot double-claw type manipulator loading and unloading device is used to realize automatic loading and unloading. | |
| Lathe bed | Natural granite, fully enclosed hood. | |
| Feed amount per grid of the handwheel (mm) | 0.001 | |
| Workpiece cutting oil cooling and filtration system | Use independent water (oil) cooling, with paper bag and magnetic filtration, and cooling coil filtration circulation tank. | |
| Water-cooling unit cooling system | An independent water cooler is configured to cool the electric spindle and linear motor by cutting the liquid coil cycle, and the cooling capacity is 1.5KW. | |
| Compressed air cold dryer | Independent electric spindle chiller with air treatment capacity of 1.5m³ / min | |
| Compressed air | The compressed air supply pressure range is 0.5-0.6Mpa, and the total gas consumption is less than 200 L/min | |
| External parameter | Working pressure 0.5~0.7Mpa, power supply 380V, 50Hz, the installed power 18KW | |
| Overall size 198016802080m m, net weight 2200 Kg | ||
| order number | configure | quantity | Specification details | vender |
| 1 | numerical control system | A set | 21 The AM bus formula | Taiwan |
| 2 | linear motion actuator | Two sets | U-type high-thrust AUM 5-S4 | Singapore |
| 3 | grating ruler | Two sets | 420/320，±3um | Spain |
| 4 | AC contactor and other electrical components | A batch of | 380V/220V/24V | France |
| 5 | Frequency conversion drive | Four | 2.2KW *3/5.5KW*1 | Taiwan / Domestic |
| 6 | Electric spindle of pneumatic static pressure workpiece | 1 Only | 1.6W/7Nm/5000rpm | domestic |
| 7 | Electric spindle of round grinding wheel in air static pressure 1 # | A set | Ultrasonic wave 1.5KW/0.18Nm/80000rpm | domestic |
| 8 | Electric spindle of pneumatic static inner round grinding wheel 2 # | A set | Ultrasonic wave 5.5KW/1.3Nm/40000rpm | domestic |
| 9 | Air static pressure grinding wheel trim the electric spindle | A set | 1.5KW/1.2Nm/12000rpm | domestic |
| 10 | Gas floating guide rail Z axis | Pay 1 | Full trip 1um | domestic |
| 11 | Air floating guide rail X axis | Pay 1 | Full trip 1um | domestic |
| 12 | Electric cabinet air conditioner | A | MCA-03H-01-1225 | domestic |
| 13 | Air freeze-dryer | A | 1.5m³/min | domestic |
| 14 | Air-based precision pressure-reducing valve | Two sets | RPE1000-8-04 | Japan |
| 15 | AE sensor (optional) | A | AE-1000 Fluid | America |
| 16 | Robot loading and unloading device (optional) | A set | Six joints, double claw type | Taiwan |
| 17 | on-line measurement | A set | The repeated measurement accuracy was ± 1.5um | domestic |
| 18 | Oil mist collector | A | FC-600 | domestic |
| 19 | lathe bed | A set | Natural granite | domestic |
